Gigabyte B450M S2H Motherboard

Gigabyte
Availability:

Out of stock

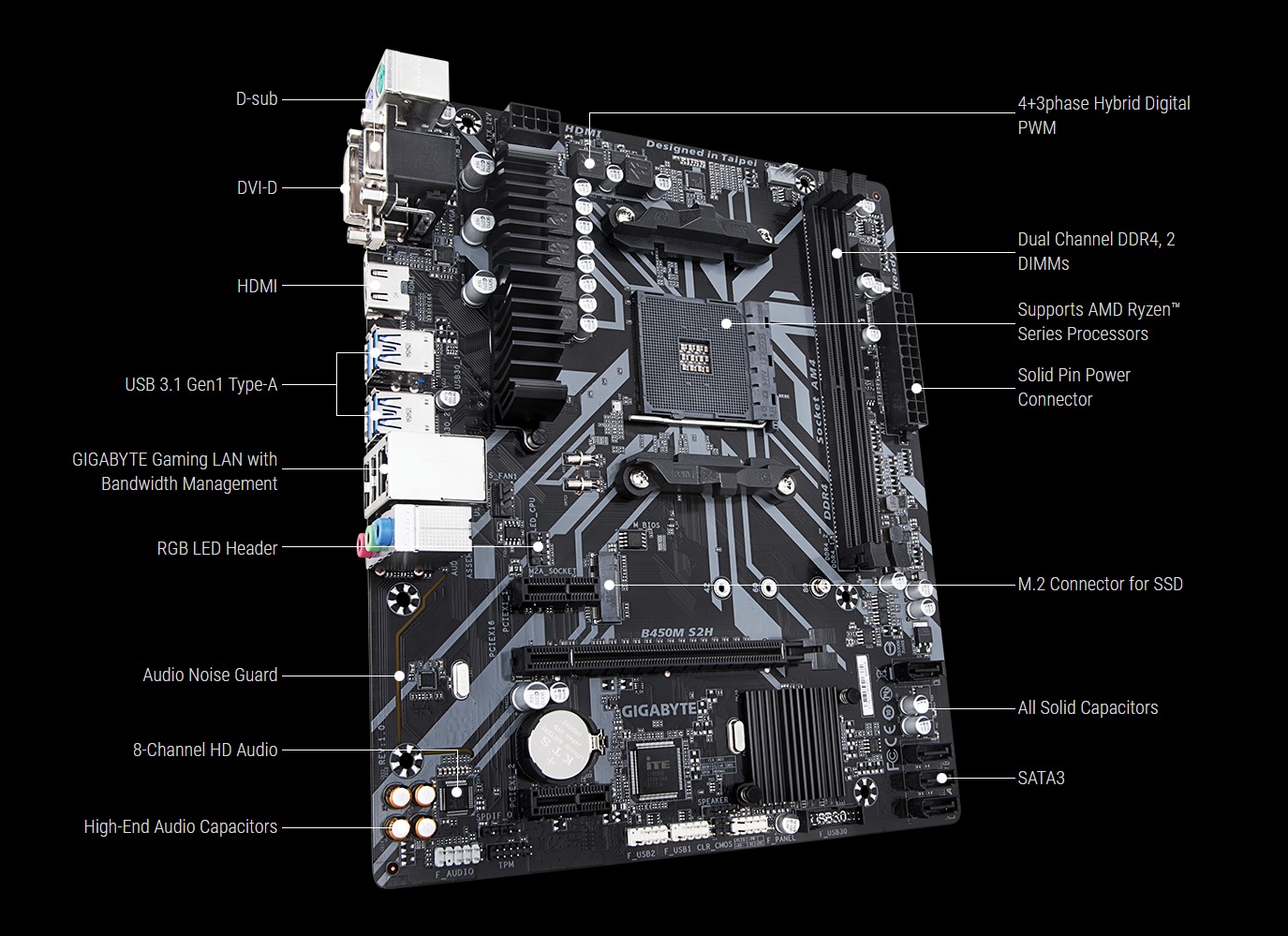

AMD B450 Ultra Durable Motherboard with GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design
  • Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • HDMI, DVI-D, D-sub Ports for Multiple Display
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB Fusion supports RGB LED Strips in 7-Colors
  • High Quality Audio Capacitors and Audio Noise Guard Design
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • APP Center Including EasyTune™ and Cloud Station™ Utilities

R15,000.0

Out of stock

SKU: B450M S2H Category: Tag:
Brands

Chipset

B450
Category

AM4
Model
Brand GIGABYTE
Model B450M S2H
Supported CPU
CPU Socket Type  AM4
CPU Type AM4 Socket: Support for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / Ryzen 1st Generation Processors
Chipsets
Chipset  AMD B450
Memory
Number of Memory Slots 2×288pin
Memory Standard DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
Maximum Memory Supported 32GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 3.0 x16  1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1 2 x PCI Express x1 slots
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
* Supports only M.2 SATA SSDs when using an AMD Athlon 200-series / 7th Generation A-series or Athlon APU.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60Hz*
* Support for HDMI 2.0 version and HDCP 2.2.*

Maximum shared memory of 2GB

* Actual support may vary by CPU.
Onboard Audio
Audio Chipset  Realtek ALC887
Audio Channels  2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Onboard LAN
LAN Chipset Realtek GbE LAN chip
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2  1 x PS/2 keyboard port
1 x PS/2 mouse port
Video Ports 1 x D-Sub port
1 x DVI-D port
HDMI  1 x HDMI
RJ45 1 x RJ45
USB 3.1 4 x USB 3.1 Gen 1 ports
USB 1.1/2.0 2 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip / RGB LED strip header
1 x Trusted Platform Module (TPM) header (2×6-pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Physical Spec
Form Factor Micro ATX
LED Lighting RGB
Dimensions (W x L) 9.6″ x 8.1″
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
