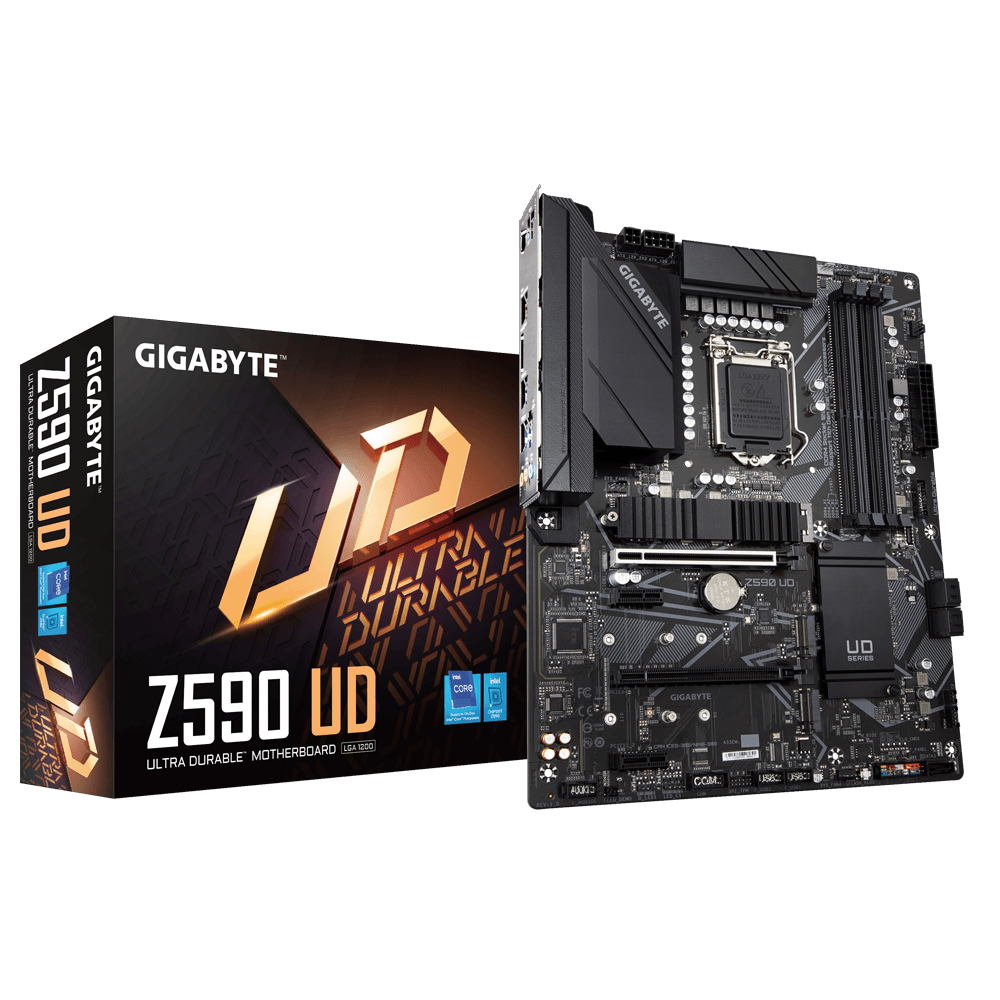

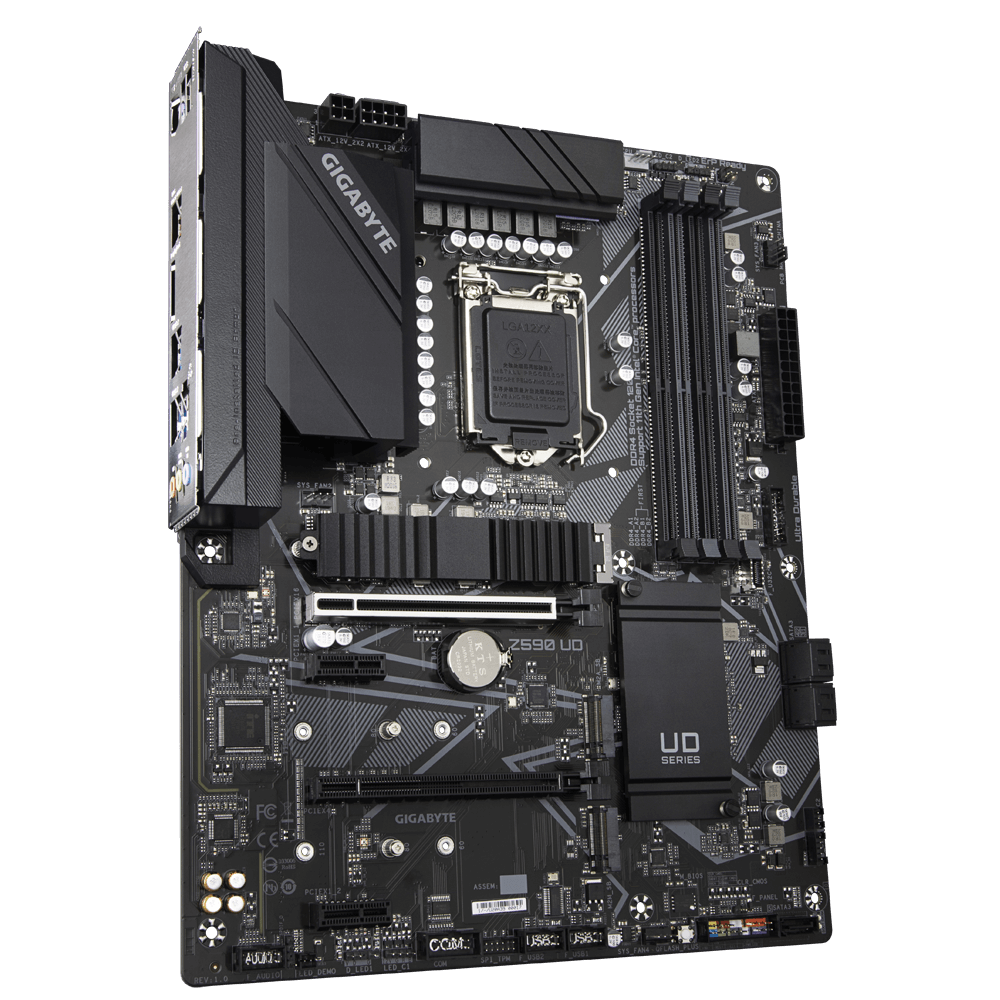

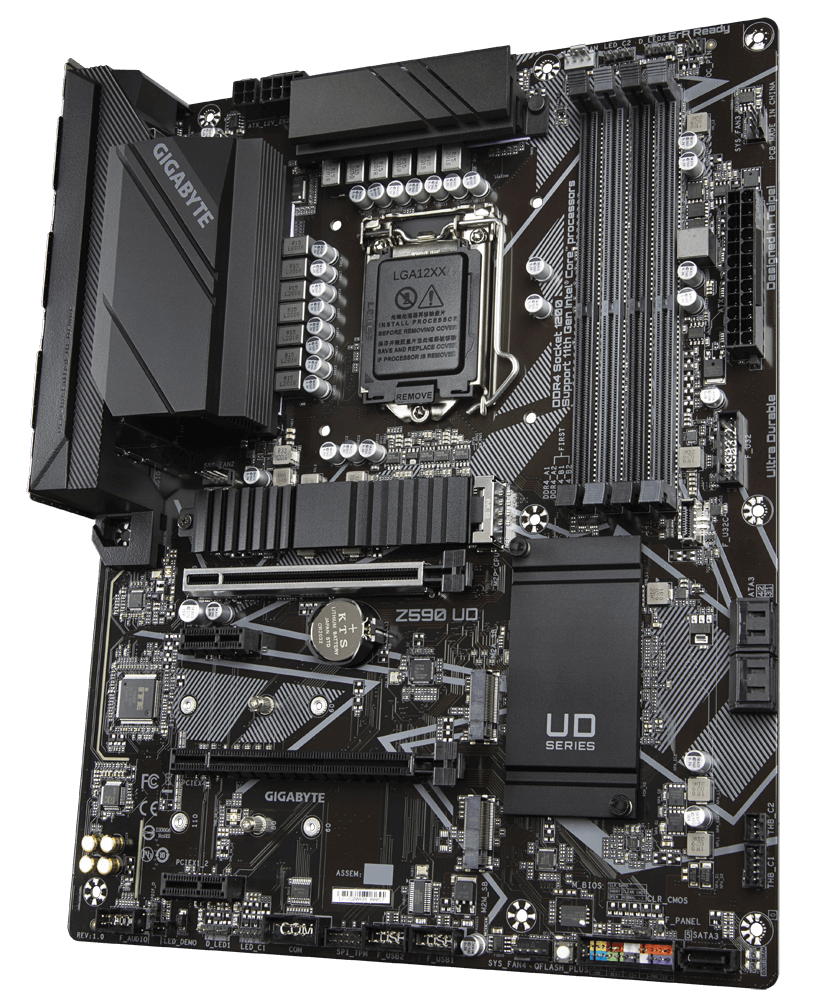

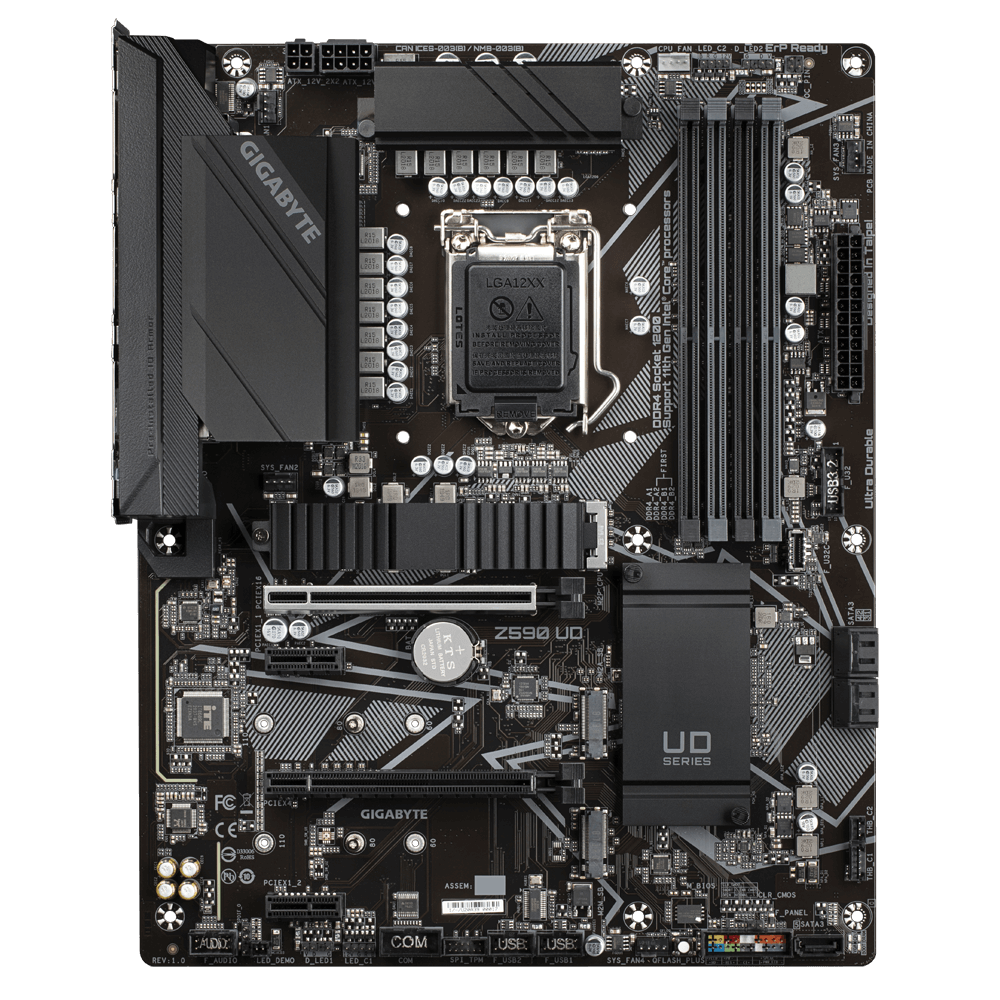

Intel® Z590 Ultra Durable Motherboard with Direct 12+1 Phases Digital VRM and DrMOS, Full PCIe 4.0* Design, Extended Thermal Design with Integrated IO Armor, PCIe 4.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus
-
- Supports 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact
- Fast 2.5GbE LAN with Bandwidth Management
- Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
- USB 3.2 Gen2 and Front USB Type-C® for Fast and Versatile Connections

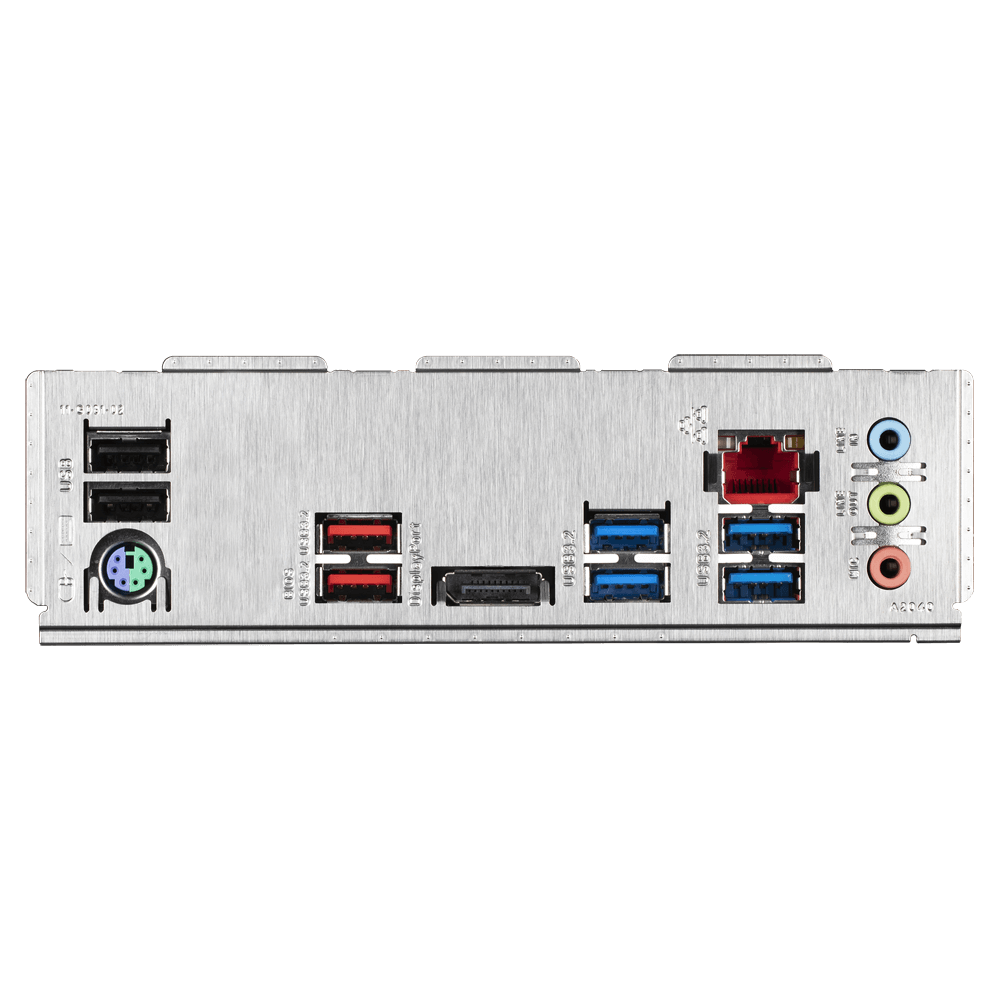

- Pre-installed IO Shield for Easy and Quick Installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- * Actual support may vary by CPU.
Back to top
OVERVIEW
POWER
THERMAL
PERFORMANCE
CONNECTIVITY
LIGHTING
ULTRA DURABLE
SOFTWARE
Rear USB 3.2 Gen2
DisplayPort
2.5G GbE LAN
Advanced Thermal Design with Integrated IO Armor
3* M.2 Connectors
- 1*PCIe 4.0 x4 M.2
- 2*PCIe 3.0 x4 M.2
- Thermal Guards
RGB FUSION 2.0
- Addressable LED Header*2
- RGB LED Header*2
Solid Pin Power Connectors
Direct 12+1 Phases Digital Power Design
- 50A DrMOS
- Premium Choke and Capacitor
- 6 Layer PCB
- PCIe 4.0 Ready Mid-Loss PCB
- 2X Copper PCB
Supports 11th Gen. Intel® Core™ Processors
Front USB3.2 Gen1 Type-C® for Connecting Devices
Full PCIe 4.0 Design
- 1*PCIe 4.0 x16 slot
- 1*PCIe 4.0 x4 M.2
Q-FLASH Onboard Button
POWER
12+1 Phases Digital Power Design
Power Architecture
Power Efficiency
Digital PWM
Driver MOSFET
All-solid Capacitor
CPU Power Connector
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- Digital PWM Controller to deliver appropriate voltage to the CPU.
- Direct 12+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 600 Amps current in total.
- All-solid capacitors to improve Transient response and minimize oscillation.
- 8+4 Solid Pin CPU Power Connectors.
THERMAL
Thermal Design
M.2 Thermal Guard
Smart Fan 6
Advanced Thermal Design with Integrated IO Armor
MOSFET Heatsinks
Grooved for Air-Flow
Thick Thermal Pad
PERFORMANCE
XMP 4800+
PCIe 4.0 Hardware Design
3X PCIe 4.0/3.0 x4 M2
Hi-End Audio
* XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.
Please see the complete validated memory support list. Product features may vary by model.
CONNECTIVITY
2.5GbE LAN
USB 3.2 Gen1 TYPE-C®
First Adopter on 2.5GbE LAN Onboard
2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet
LIGHTING
RGB FUSION
RGB FUSION Software
RGB FUSION APP
RGB FUSION 2.0
With Z590 UD Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
With Z590 UD Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.
Cycle Color
Static
Pulse
Flash
Double Flash
Music
Random
Game
Digital A
Digital B
Digital C
ULTRA DURABLE
PCIe Armor
Solid Pin
Q-Flash Plus
GIGABYTE Patented Double Locking Bracket
SOFTWARE
BIOS
APP Center
Easy Tune
System Information Viewer
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.
